KRI 850
Cable Coiler
Overview

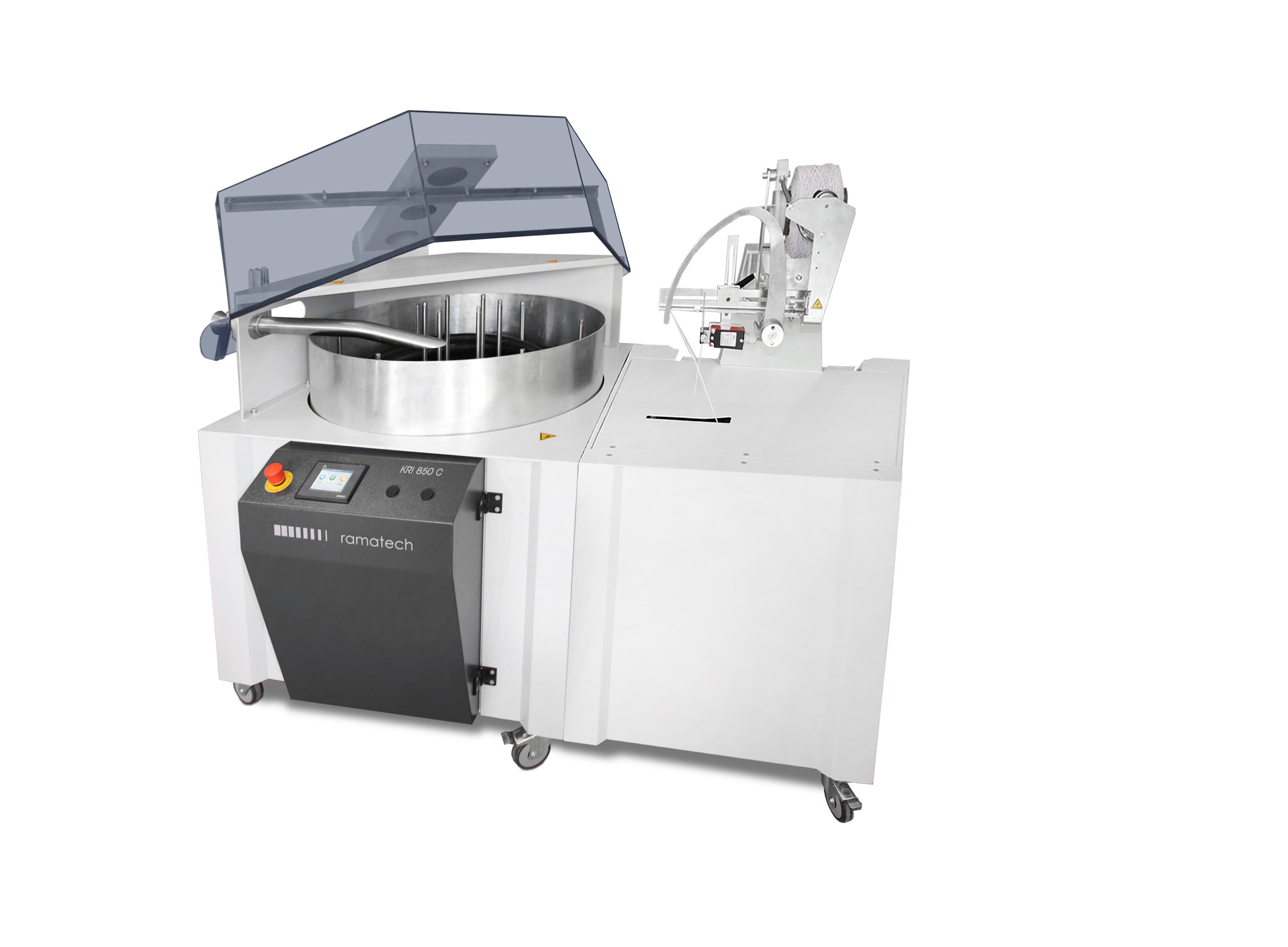

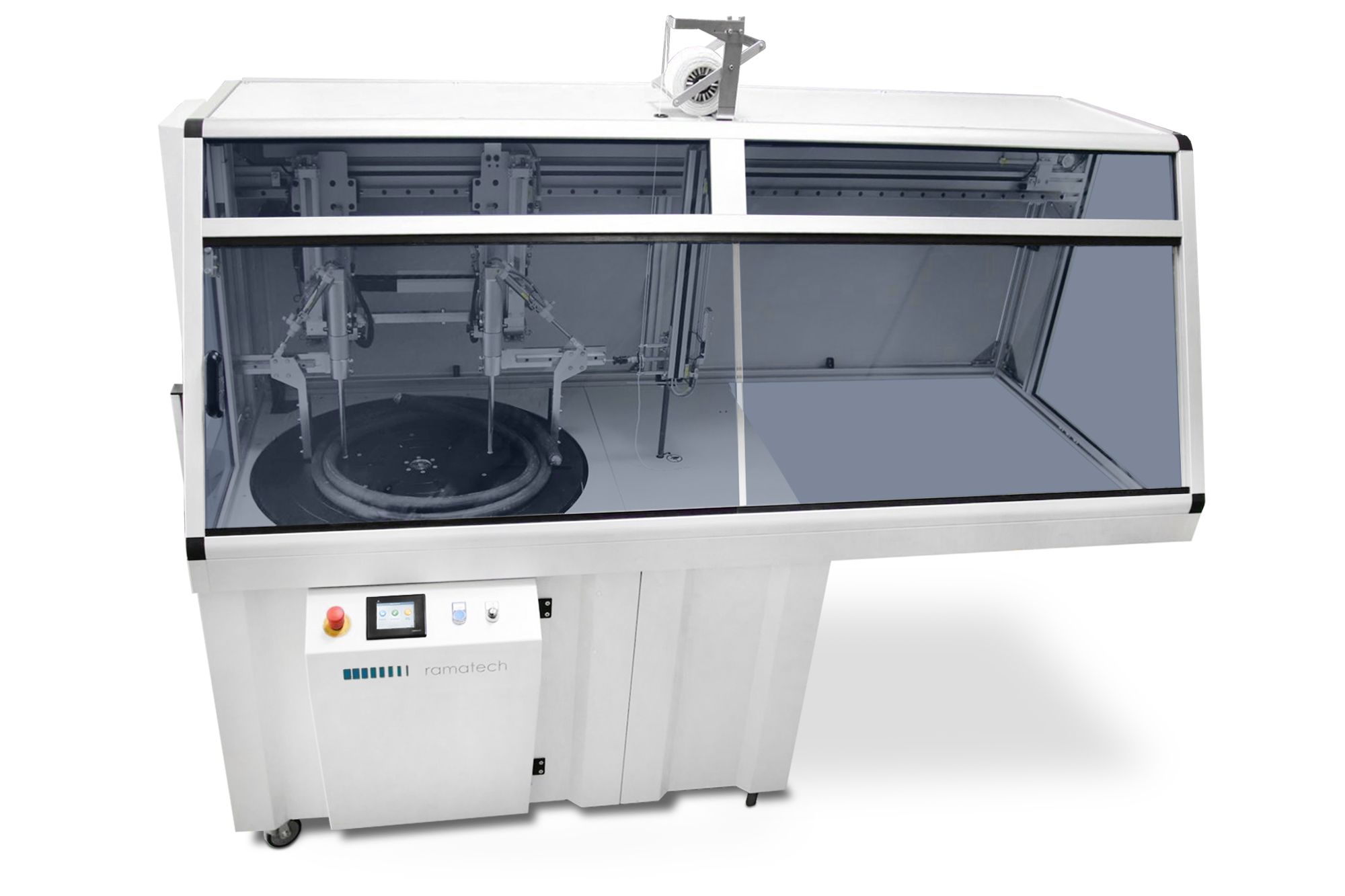

The KRI 850 coiling machine from our partner Ramatech is a fully synchronized, high performance cable coiler that interfaces with Schleuniger cut and strip machines. It's available in three configurations: basic coiling, coiling with integrated binding and coiling with integrated and automatic stacking as extension modules.
- For cables and flexible wires up to 35 mm (1.38") in diameter
- Quick and easy programming of the coiling parameters
Technical Data
| KRI 850 C | KRI 850 CB | KRI 850 CBP | |
| Raw Material Diameter | max. 35 mm (1.38") | ||
| Inner Coil Diameter | 250 - 600 mm (9.84 – 23.62“) | ||
| Outer Coil Diameter | max. 850 mm (33.46“) | ||
| Coil Height | max. 160 mm (6.29“) | ||
| Coil Weight | 80 kg (176 Ibs) | 20 kg (44 Ibs) | |
Compatible with
